Harmony G3.5 pro

Recreational Sports Field & Area Lighting

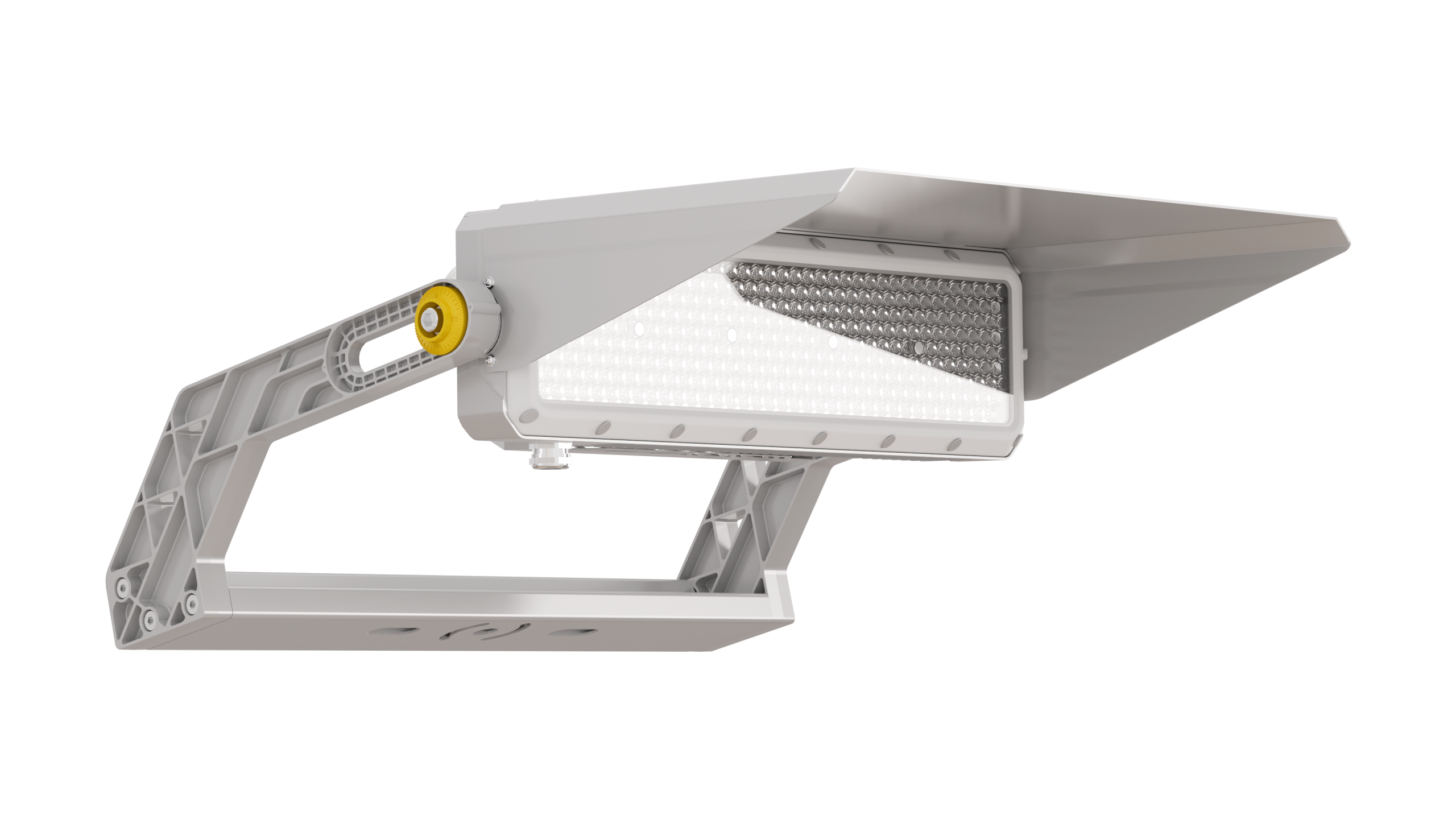

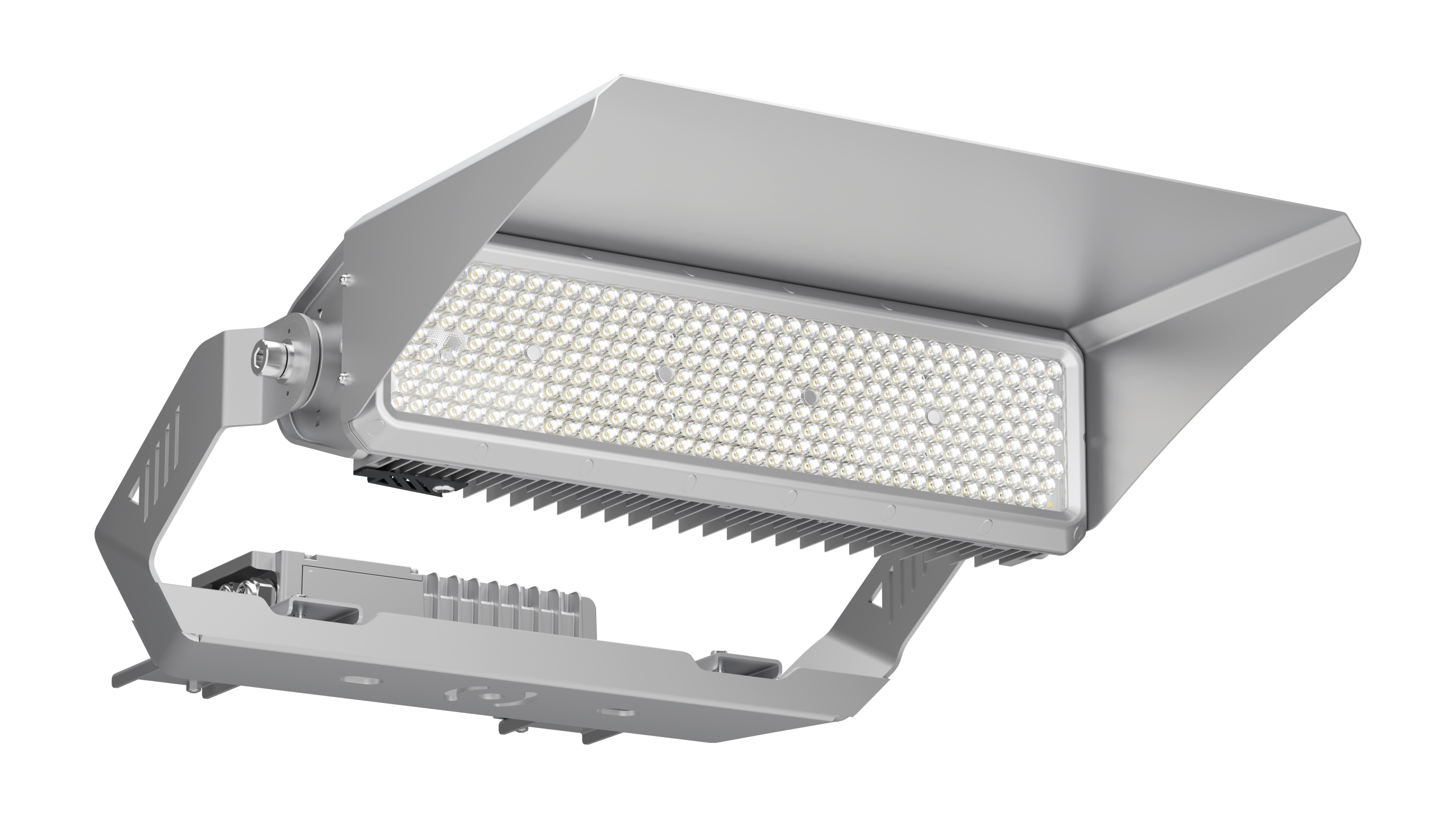

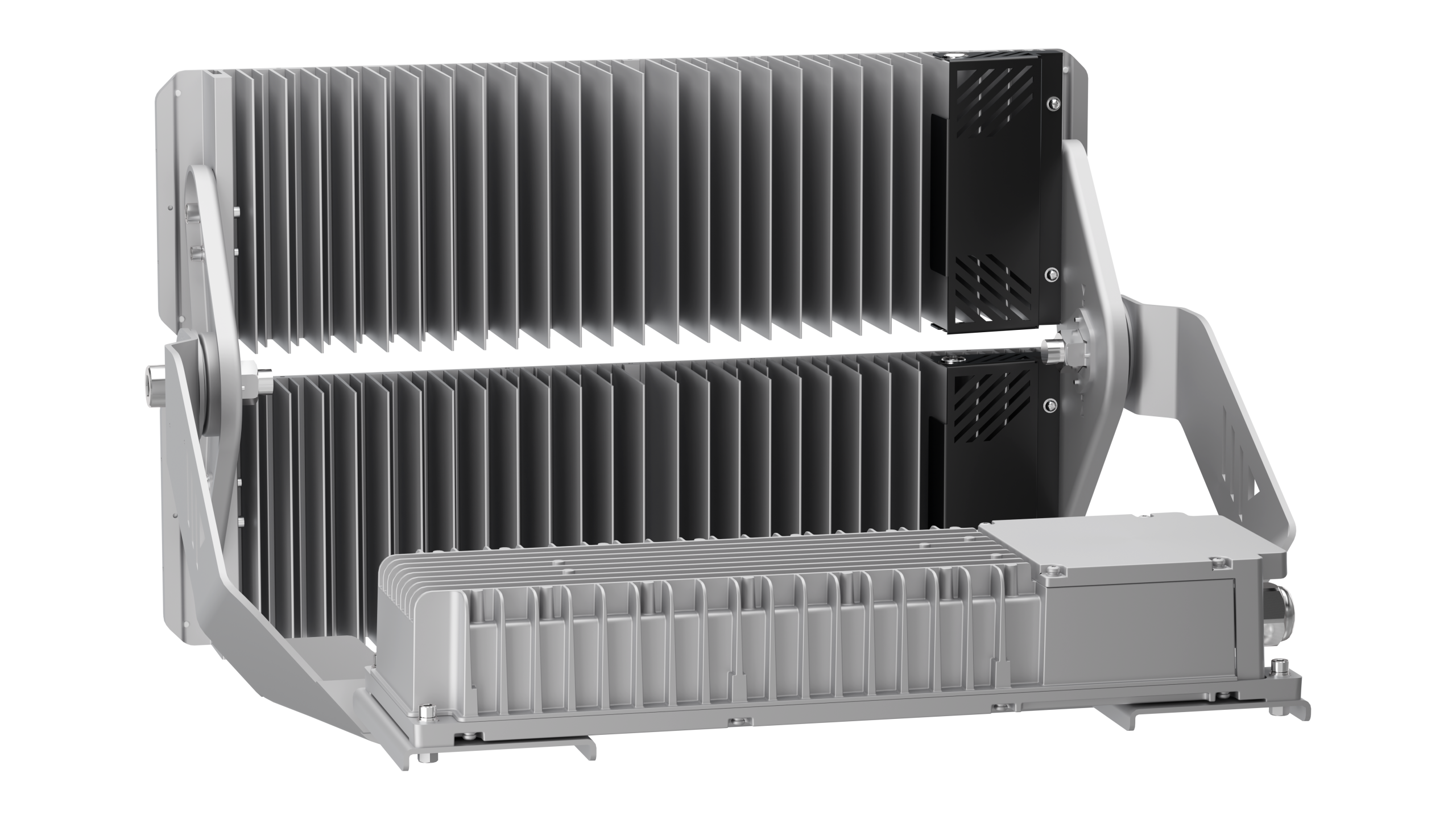

Low copper aluminum, lightweight and reliable. Using Akzonobel powder spraying and other surface treatment processes, through 2000 hours of salt spray test Patent friction plate design, only one screw on both sides is needed to adjust the angle of the lamp, making installation and debugging convenient. With flicker <2%, TLCI>90, enables TV broadcasters to film super-slow-motion replays, which can meet the highest level of competition lighting requirements. Various symmetrical and asymmetrical high transmittance PC lenses, anti-UV, IK10 protective grade, suitable for different lighting scenes such as sports, airports, ports, etc. Equipped with DALI or DMX interface as standard, combined with the main control system, it can realize various lighting control effects such as RGB/RGBA/RGBW, light flashing, and light tracing. Special design for hiding the internal circuit, which can not only prevent the wire from aging due to sunlight but also prevent external organisms( such as birds) from biting on the wire. The power supply can be installed on the bracket of the light or in the distribution cabinet under the light pole, which is convenient for application in different construction plans.

Contact Us Today To Discuss Your Requirements

LED Sports Lighting

AFL47

GENERAL INFORMATION

Model

600W 1200W 1800W

DIMENSIONS AND WEIGHT

Length

918mm

Width

641mm

Height

270mm

Weight

28kg

ELECTRICAL CHARACTERISTICS AND CONTROLS

Driver

Inventronics / Sosen

Voltage

AC100-277V/277-480V

Frequency

50/60 Hz

Power factor

≥0.95

Current

3.75-18A

Surge protector (common)

(EN 61547)

10kV

Insulation class

Class I

Dimmable

0-10V/DALI/DALI2.0/DMX

PHOTOMETRIC DATA

Lighting source

LUMINUS

CRI

>70Ra

Power absorption (total)

1800W

CCT

3000K/4000K/5000K/5700K

Efficacy

up to 140 lm/W(CCT=5700K)

Flicker Factor

<2%

LED flux maintenance

>100000Hrs (Ta=30℃ @L80)



MECHANICAL CHARACTERISTICS

Impact resistance rating

Ik10

IP

IP66

Ambient temperature – min

-40 °C

Ambient temperature – max

+50℃



Applications (Sports Areas)

Projects

Aplications:
Multi-use Fields
High Schools
Tennis Courts
Pro/Semi-Pro Practice Fields

AIKO Lighting is a professional-grade sports lighting manufacturer for indoor or outdoor sports lighting applications. The low glare optics helps to make an enjoyable environment for players and spectators. Switching to LED luminaires is a great retun on your investment , with up to 60% of energy-savings compared with metal halides or HID. Quick installation and labor cost-saving solution. Flexible mounting solutions of different types of brackets.

Get A Quote & Catalogue

The Right Sports Lighting Manufacturer

Flicker Free up to 1,500fps Ultra Slow-motion. AIKO delivers maintenance-free sports lighting with a fantastic return on investment.
