Star Lord

ASV7 Mobile Lighthouse

The morning light is full of energy, and the evening light is soft. The intelligent photovoltaic system ensures that every ray of sunlight is not wasted, and the APP can control the flickering time at will. From now on, there is no more anxiety in the night, only a quiet lighting experience accompanied by the breeze.



Contact Us Today To Discuss Your Requirements

659

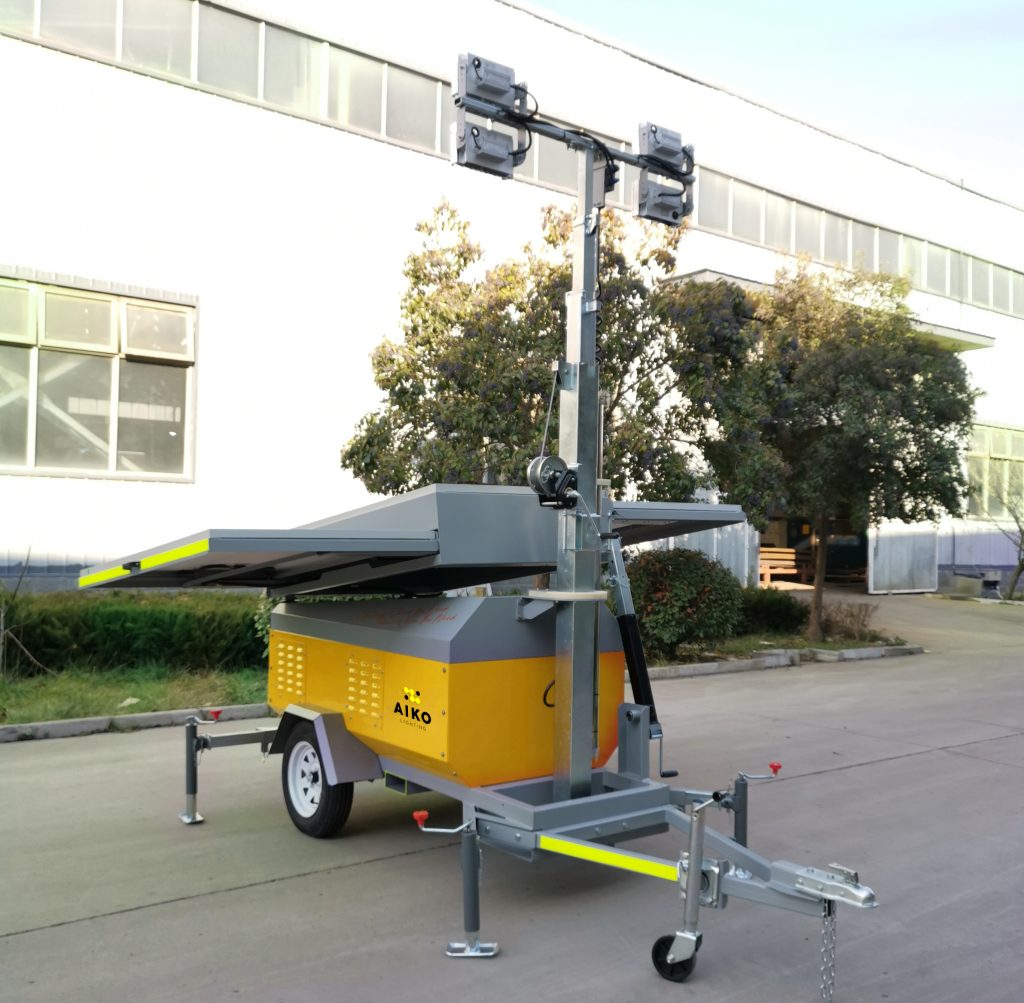

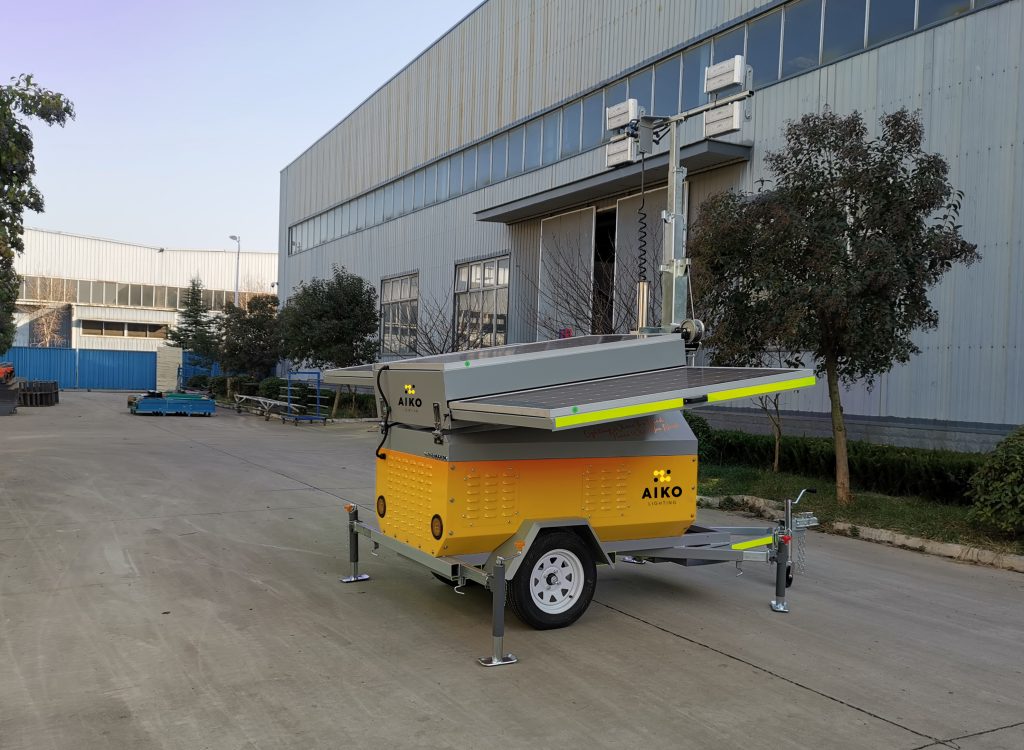

Mobile Lighthouse

ASV7

Dimensions

Trailer Length: 3,360 mm (11′ )

Length for loading: 2,165 mm (7′ 1½”)

Width: 1,320 mm (4’4″)

Width while solar panels fully extended : 3,070 mm (10’1″)

Height/Hight for loading: 2,800 mm(9’2″)/ 2,490 mm (8’2″)

Height fully extended : 7 m  ( 23′ )

Gross weight : 955 kg (2,096 lb)



Solar panel & battery system

System voltage: 24 VDC

Solar panel system: 870 W- 3*290 W  Mono

Retractable panel system: Manual sliding system with guide rail

Panel sunshine tilt: Manually 7.5°- 35° adjustable with 7,000 lb jack

Battery : 4*200 Ah gel

Controller (Day time): 1*40 A MPPT controller

Additional accessory: A 30 ADC charger with cable & plug

General Data

fully charged : 9- 10 hours (Theoretical data for reference only)

Max. wind resistance (All solar panels retracked): 20 m/s (45 mph)

Max. load in 40′ high cube: 9

Max towing speed: 100 km/h ( 62 mph)

Tail lights: Night, turning & stopping tail lights

Tow Coupler: 2″, 50 mm ball coupler or 3″ pintle ring

Applications (Sports Areas)

Projects

Aplications:
mine
court

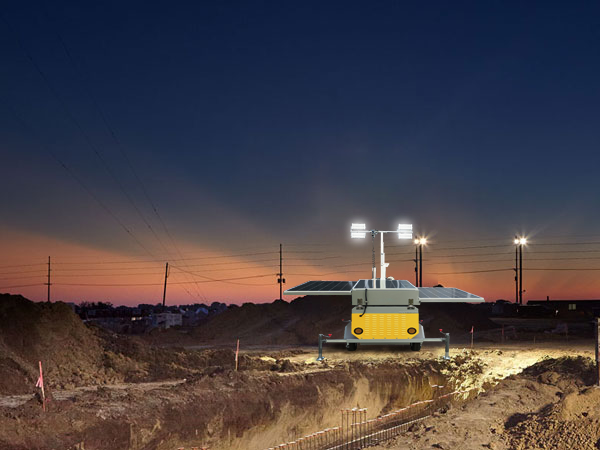

Construction Site

AIKO Lighting is a professional-grade sports lighting manufacturer for indoor or outdoor sports lighting applications. The low glare optics helps to make an enjoyable environment for players and spectators. Switching to LED luminaires is a great retun on your investment , with up to 60% of energy-savings compared with metal halides or HID. Quick installation and labor cost-saving solution. Flexible mounting solutions of different types of brackets.

Get A Quote & Catalogue

The Right Sports Lighting Manufacturer

Whether it is mining, sports lighting or construction site lighting, traditional lighting is always limited by sockets and batteries. This solar mobile lighting makes everything easier.
