ATN9 Series Light Tower
TN9 series diesel light tower is manual horizontal light tower, 9m manual light mast, 330°manual rotation with locking pin. It is powered by Japan Yanmar or Kubota engine and ltaly Mecc Alte alternator, with 4*1000W metal halide, 300-400W LED are optional. Two individual manual winches are installed on the tower which ensure the operation of mast more reliable and safer, self-locking device be fitted on all winches which makes the extension of mast easily. lt is economic, compact designed for transportation, it can be loaded 18 sets in a 40’high cube to save more transportation cost. Robust canopy with powder coated treatment and thickened metal plate which provide protection for interior components, and greatly improve life expectancy of light tower especially in the harsh environment, this mode
Contact Us Today To Discuss Your Requirements
Mobile beacon
ATN9 Series Light Tower
Specifications
Length: 3,180 mm (10′ 5″ )
Width: 1,320 mm ( 4′ 4″ )
Height: 1,450 mm ( 4′ 9″ )
Height extended fully: 9 m (29′ 7”)
Gross weight: 950 kg ( 2,084 lbs )
Engine
Model: 3TNV76 Yanmar
Speed: 1,500rpm/ 1,800 rpm
Engine characters: 3 cylinders, 4 cycles & Water cooling
Combustion/Aspiration: IDI / Naturally aspirated
Alternator
Model: LT3N-130/4 MECCALTE
Frequency (HZ): 50/60
Rating voltage: 230VAC 240/120 VAC
Insulation: Class H
Mast & Lights
Luminaire: 4*400W LED
Luminous flux: 232,000 Lm
Mast sections: 3
Mast lift & extension: Manual
Mast rotation: 330° Manual rotation with locking pin
Light tilt: Manual
Trailer
Suspension & brake: Leaf spring axle without brake
Towing bar: Straight-bar with a supporting wheel
Stabilizing leg: 4 extendable bars with jacks
Wheel: 14″ rim with regular tire
Towing coupler: 2 inch ball & 2½ inch ring switchable coupler
Tail lights: Complex tail lights
Max towing speed: 100 km/h ( 62 mph)
Applications (Sports Areas)
Projects
Aplications:
Mine

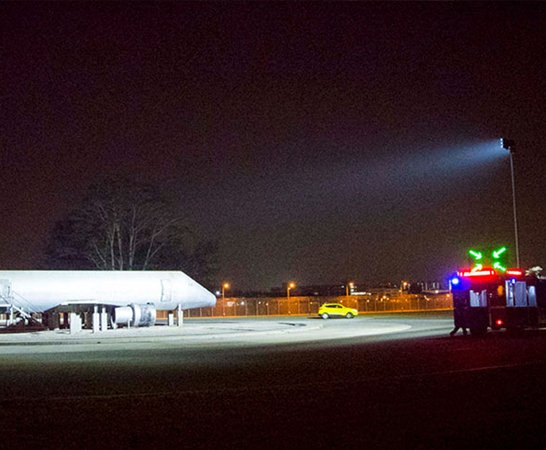

Emergency Rescue

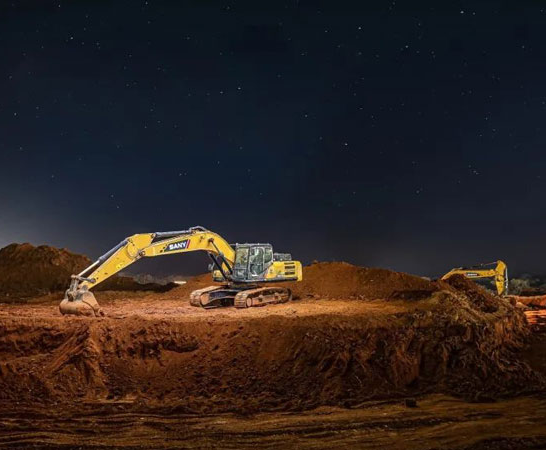

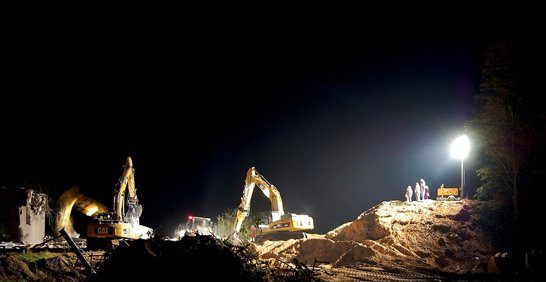

Construction Site

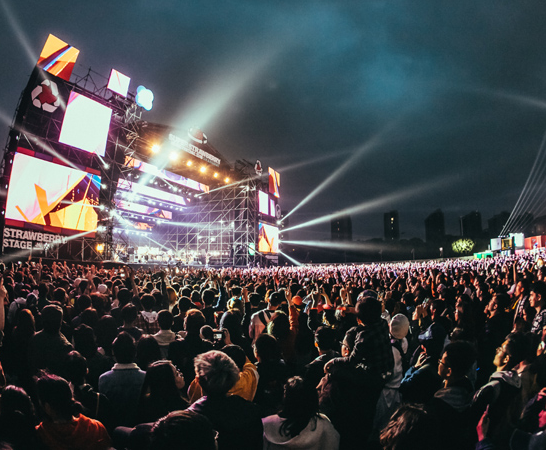

Music Festival
AIKO Lighting is a professional-grade sports lighting manufacturer for indoor or outdoor sports lighting applications. The low glare optics helps to make an enjoyable environment for players and spectators. Switching to LED luminaires is a great retun on your investment , with up to 60% of energy-savings compared with metal halides or HID. Quick installation and labor cost-saving solution. Flexible mounting solutions of different types of brackets.
