Harmony G3.5

Recreational Sports Field & Area Lighting

integral die-cast low copper aluminum, lightweight and reliable. Adopt multiple surface treatment processes, such as Akzo Nobel powder spraying, pass 2000 hrs salt spray test. With flicker <2%, TLCI>90, enables TV broadcasters to film super-slow-motion replays, which can meet the highest level of competition lighting requirements. Various symmetrical and asymmetrical high transmittance PC lenses, anti-UV, IK10 protective grade, suitable for different lighting scenes such as sports, airports, ports, etc. Equipped with DALI or DMX interface as standard, combined with the main control system, it can realize various lighting control effects such as RGB/RGBA/RGBW, light flashing, and light tracing. Special design for hiding the internal circuit, which can not only prevent the wire from aging due to sunlight but also prevent external organisms( such as birds) from biting on the wire. The power supply can be installed on the bracket of the light or in the distribution cabinet under the light pole, which is convenient for application in different construction plans.

Contact Us Today To Discuss Your Requirements

LED Sports Lighting

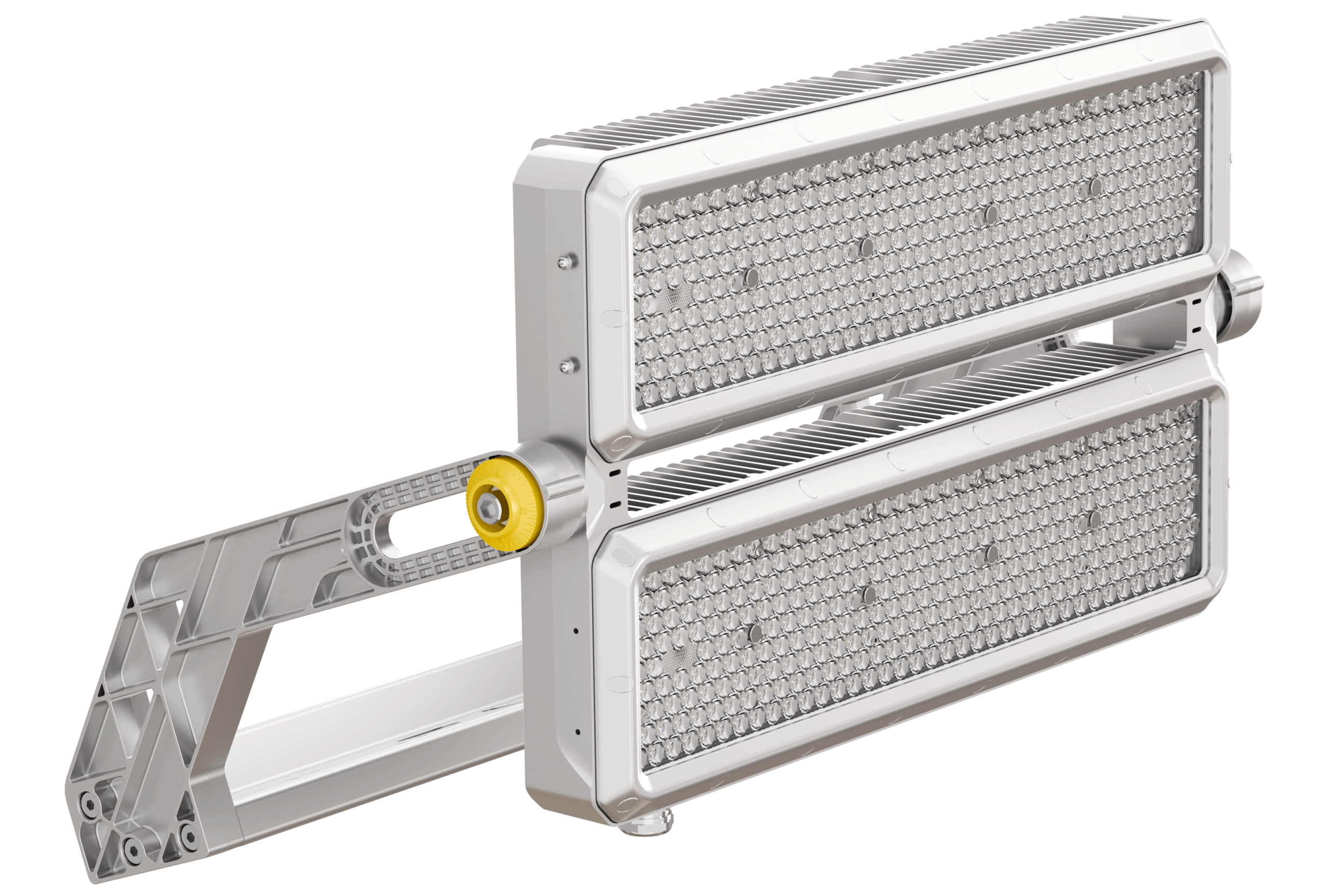

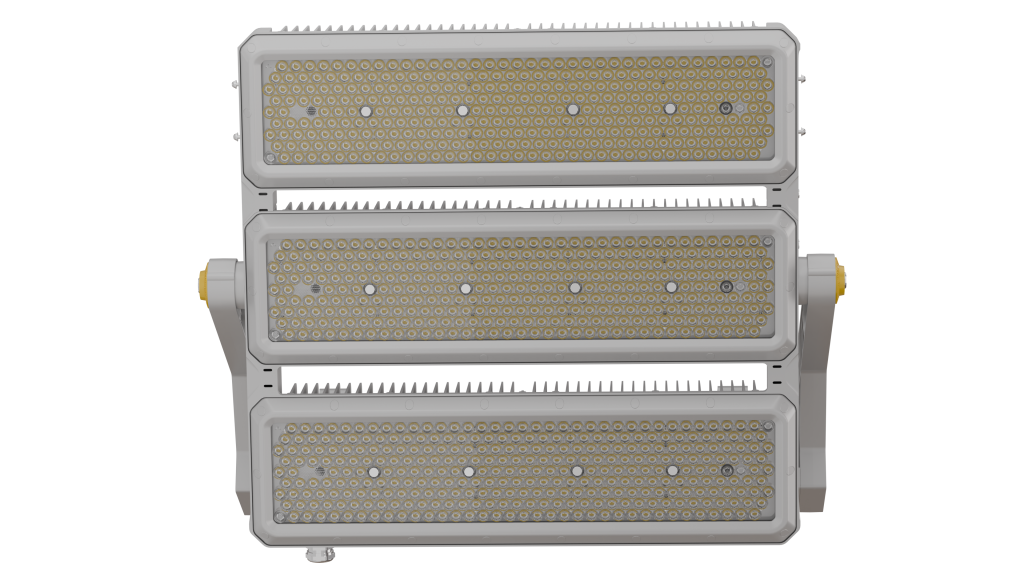

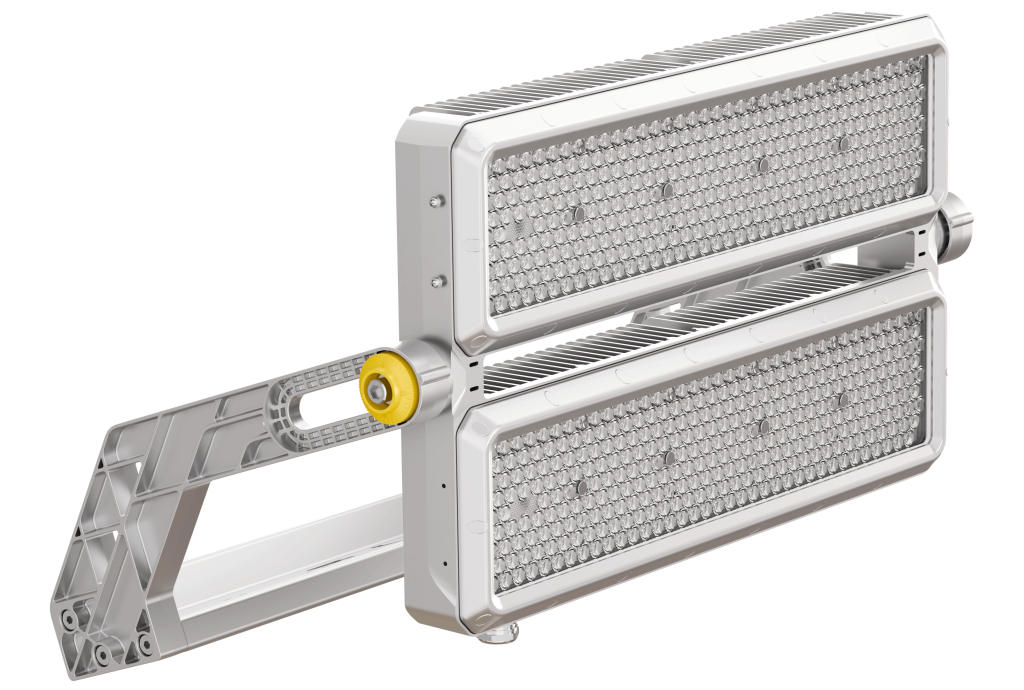

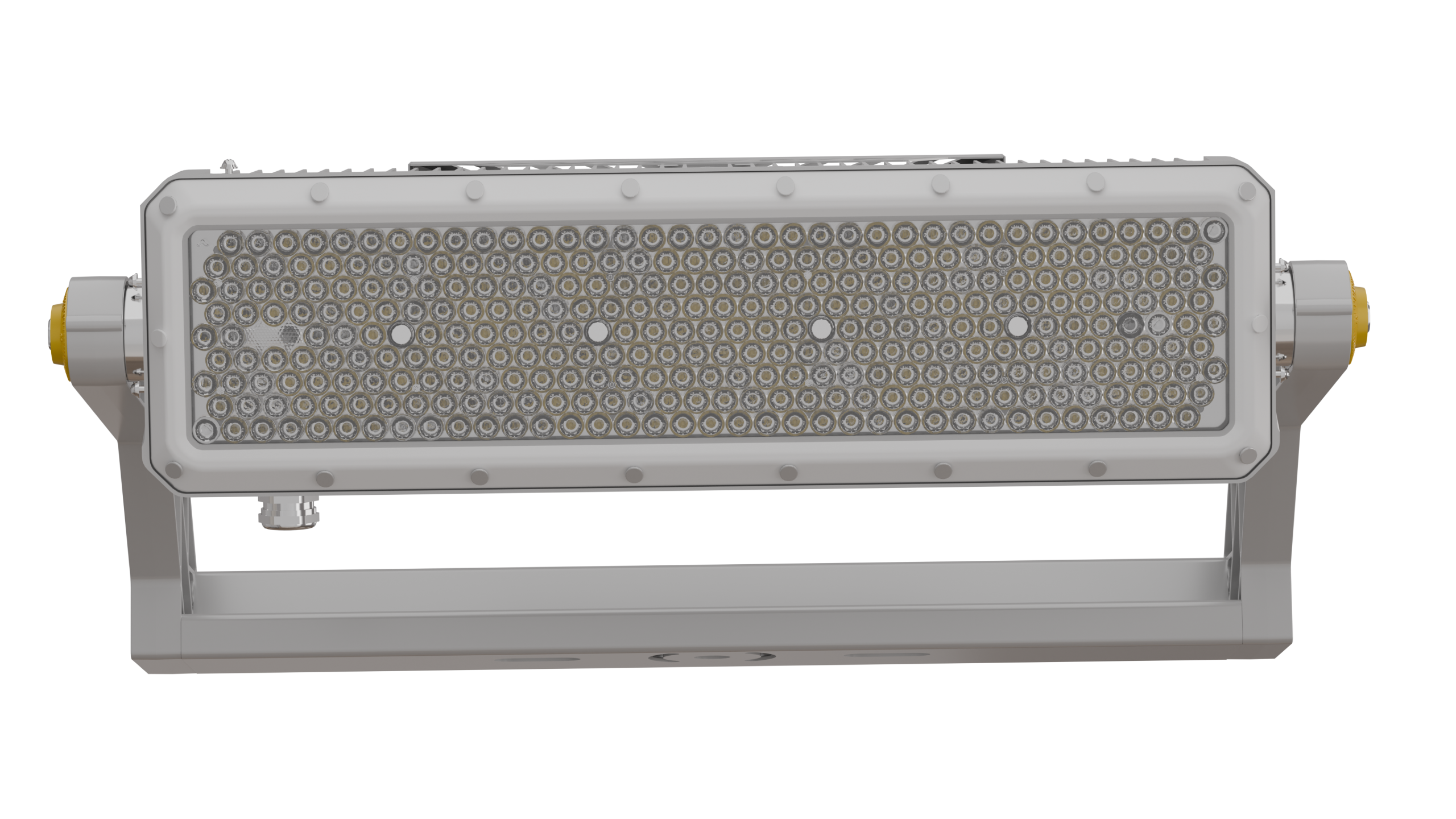

Atlas ASP03

GENERAL INFORMATION

Model

500 600 1000 1200 1500 1800W

DIMENSIONS AND WEIGHT

Length

715mm

Width

579mm

Height

599mm

Weight

Light head 24kg, driver 7.5kg

INSTALLATION

Surface exposed to wind

0.441㎡(4.75ft²)

ELECTRICAL CHARACTERISTICS AND CONTROLS

Driver

Inventronics

Voltage

AC200-440V

Frequency

50/60 Hz

Power factor

≥0.95

Current

8.0A Max@220VAc

Surge protector (common)

(EN 61547)

10 kV, 10 kV

Insulation class

Class I

Dimmable

0-10V Dali/DMX as option

PHOTOMETRIC DATA

Lighting source

Osram/Lumileds/Samsung

CRI

70/80/90Ra

Power absorption (total)

1800 W

CCT

 2700/3000/4000/5000/5700K

Efficacy

 up to 150lm/W

Flicker Factor

 <2%

LED flux maintenance

78,000 hr, L 80, B 10

MECHANICAL CHARACTERISTICS

Impact resistance rating

Ik10

IP

66

Ambient temperature – min

-40 °C

Ambient temperature – max

+50℃

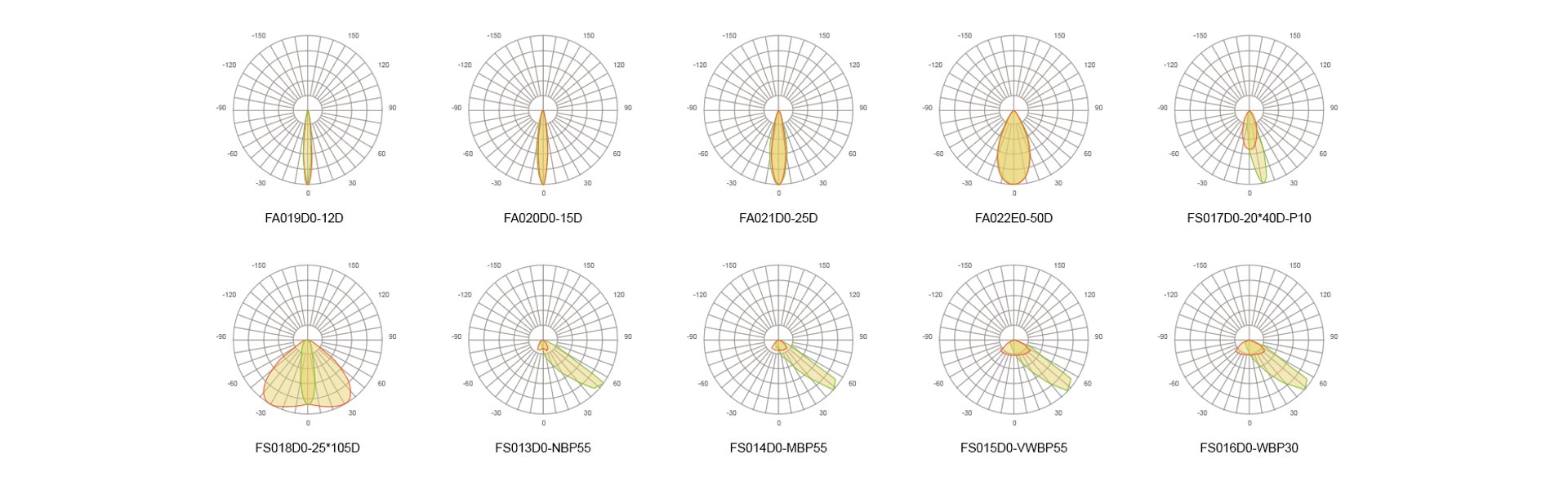

Photometric

Applications (Sports Areas)

Projects

Aplications:
Multi-use Fields
High Schools
Tennis Courts
Pro/Semi-Pro Practice Fields

AIKO Lighting is a professional-grade sports lighting manufacturer for indoor or outdoor sports lighting applications. The low glare optics helps to make an enjoyable environment for players and spectators. Switching to LED luminaires is a great retun on your investment , with up to 60% of energy-savings compared with metal halides or HID. Quick installation and labor cost-saving solution. Flexible mounting solutions of different types of brackets.

Get A Quote & Catalogue

The Right Sports Lighting Manufacturer

Flicker Free up to 1,500fps Ultra Slow-motion. AIKO delivers maintenance-free sports lighting with a fantastic return on investment.
